Chromium Carbide Overlay Welding: Extend Equipment Life & Slash Downtime Costs

Discover how chromium carbide cladding technology can create ultra-wear-resistant surfaces for mining, cement, and power equipment. Extend equipment service life, reduce replacement costs, and improve production efficiency. Get your solution now!

Get A Quote

Advantages of Chromium Carbide Overlay Welding

Unmatched Wear Resistance

Engineered substrates are eight times more resistant to scratching and abrasion in high-silicon environments (such as mining conveyors) than quenched steel.

Corrosion Resistance in Harsh Environments

Resistant to acids, alkalis, and oxidizing agents—suitable for chemical processing (e.g., sulfuric acid slurry treatment).

Thermal Stability Under Extreme Temperatures

Maintains a hardness of 58+ HRC at 1,200°F (650°C) without spalling—critical for boiler tubes and kiln linings.

Impact-Resistant High-Strength Bonding

Micro-crack structures absorb kinetic energy and prevent fractures from occurring under repeated hammering (e.g., wear-resistant plates in crushers).

Ultimate Industrial Wear Protection: Chromium Carbide Overlay Welding Explained

VIEW DETAILS

Chromium Carbide Overlay (CCO) Wear Constructure Parts

VIEW DETAILS

Double Metal Chromium Carbide Overlay Wear Fittings and Elbow

VIEW DETAILS

Chromium Carbide Hardfacing Welding Wear Grizzly Bar

VIEW DETAILS

Double Metal Chromium Carbide Overlay Wear Pipes

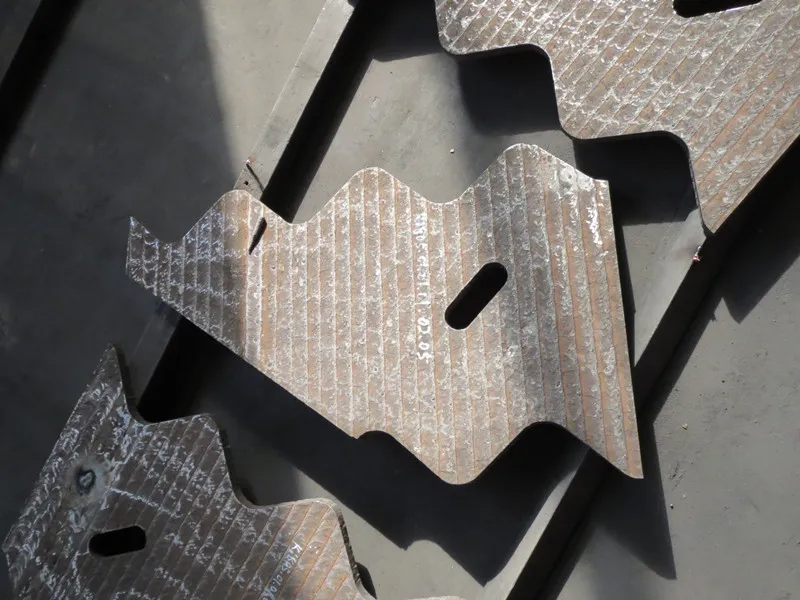

Chromium Carbide Hardfacing Welding Overlay Wear Liner

Overview:

Chromium Carbide Hardfacing Welding Overlay Wear Liner the chemical composition of the high wear resistance alloy layer contains 4 to 5% carbon and 25 to 30% chromium.

The volume fraction of Cr7C3 carbide in the metallographic structure reaches more than 50%, and the macro hardness is HRC58 to 63.

The hardness of chromium carbide is HV1400 ~ 1800, which is higher than the hardness of quartz in sandstone HV800 ~ 1200.

Since carbides are distributed vertically in the direction of wear, even when compared with casting alloys of the same composition and hardness, the wear resistance is more than doubled.

FAQ

MOQ?

Our product has no limit to quantity, it can be ordered according to customer requirement.

How is chromium carbide coating applied to building components?

Chromium Carbide Overlay is typically applied using a welding process, where a layer of chromium carbide is fused to the base material to create a wear-resistant surface.

Why are there so many cracks?

Due to the cooling rates of dissimilar metals. Our hard facing plate for coal chute liner is manufactured by welding which results in high temperatures. During the cooling, the plate goes through a stress relieving which is a natural process and does not effect the performance of the plate. The stress relief cracks should be between 3/4" - 2" apart. The cracks can be touched up by our chrome carbide welding rod.

How can I ensure the quality of Chromium Carbide Overlay construction parts?

It is important to source Chromium Carbide Overlay parts from reputable manufacturers who use high-quality materials and adhere to strict quality control standards.

Our Latest News Display

Jul

The Role of Chromium and Carbon in Hardfacing Wire Alloys

Jul

Custom Cut-to-Size CCO Wear Plates for Complex Industrial Needs

Jul

Top Industries That Benefit from Wear Plate CCO Technology

Jul

Common Mistakes When Installing CCO Plates—and How to Avoid Them

What Our Clients Are Saying

Mark Rodriguez

The kiln lining was constantly wearing out and causing shutdowns, but after using this company's CCO plates, there have been no shutdowns in six months, and production efficiency has increased by 20%!

Alex K.

The hot-rolled rollers are completely covered with steel slag, and the chromium carbide coating withstands temperatures of 1200°C, reducing the number of liner replacements by 10 times per year!

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Message

0/1000

chromium carbide overlay welding

chromium carbide overlay plates pipes spool

chromium carbide overlay liner

chromium carbide overlay

chromium carbide overlay plate

Why Choose Us

Hard-plate® is an high-tech enterprise specializing in metal matrix hard-face wear resistant steel plate and wear resistant material manufacture. Relying on domestic famous institute, Hard-plate® researches and develops wear resistant material and hardfacing welding machine independently, passed the ISO quality mangement system, have dozens of own technologies, got rewarded as high-tech enterprise in 2007 and gained national innovation funds in 2010. Now, Hard-plate® has become domestic famous enterprise.
