Chromium Carbide Overlay Pipe | 60HRC Wear-Resistant for Mining

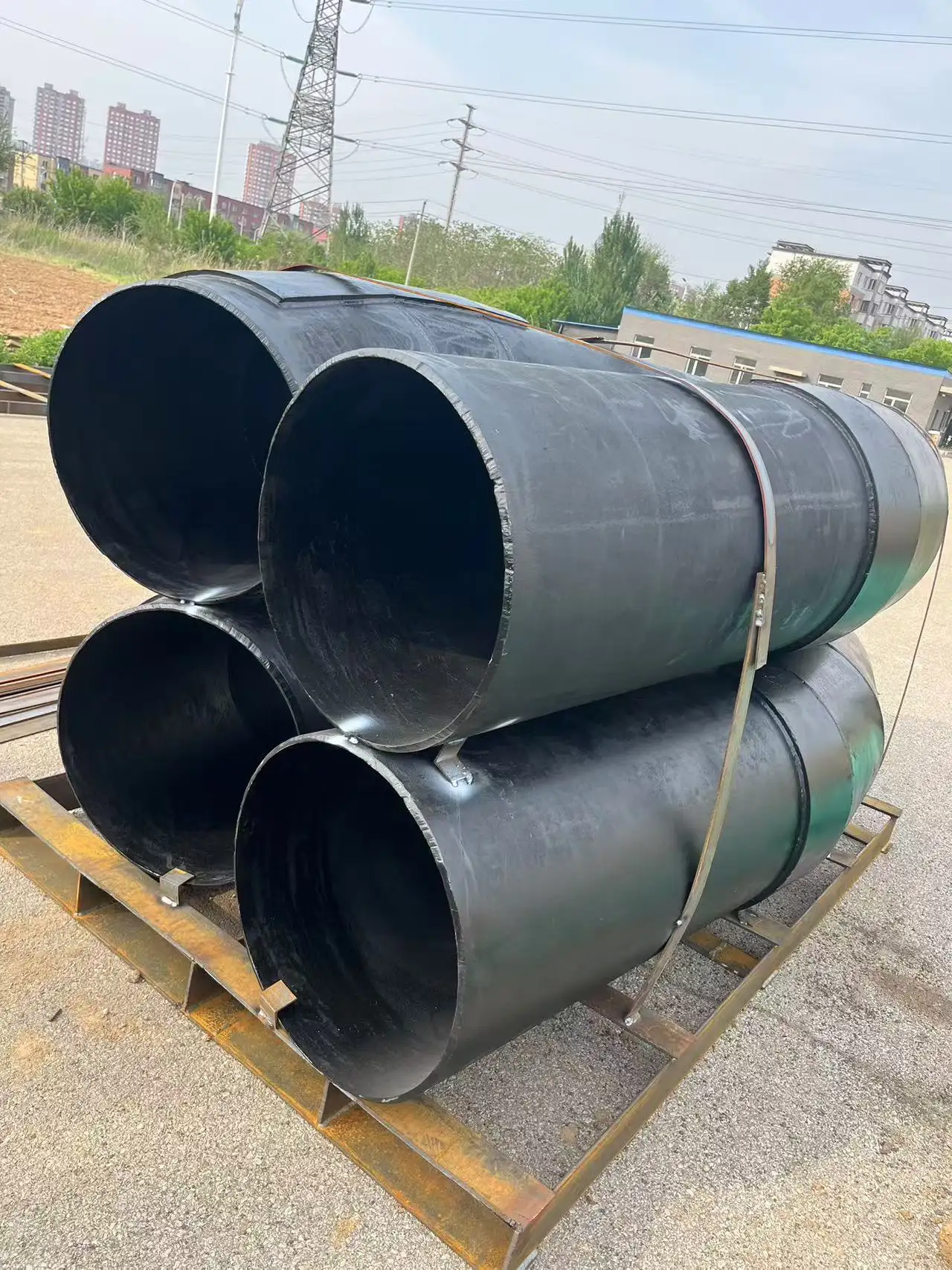

Wear Elbow:

  Our Chromium Carbide Overlay Elbows are welded with the same material. Overlay is deposited in either a single pass application which is 4mm-6mm thickness or a double pass application which is 8mm - 12mm in thickness. Wear life of our Overlay Pipe can be up to 15 to 1 over standard wear pipe. The longer wear life of our products reduce maintenance hassles, costly down time, and material loss.

Wear Pipe types

1.Steel pipe with  regular base material + overlay, pipes are welded using oscillating table with one welding head to arc weld the chromium carbide to the base material.
2.Bending the wear plate into round pipe.
3.Assembling the wear plate into square pipe.
automatic welding, metallurgical bonding, available to weld the minimum pipe diameter of 120mm and maximum pipe length of 3000mm.

Wear Elbow types

1.Weld directly on the elbow wall
2.wear plate used to make joint form

Square to Round Transition

Wear plate used to make tube with round top and square bottom.
