HST 725HB Bimetallic Wear Products | Chocky bars

Overview
Recommended Products

The unique, formable design of Shenyang Hard Co.-Chocky wear bars are available in various lengths, grades, and sizes and can also be customized as per the clients specific need. Applications for Chocky Bars are wide and varied, ranging from specific wear protection on buckets for loaders, excavators and draglines machines,or for weld on hammer tips for the re-cycling industry, or chute linings and rock box edges. They are easy to use and install. They can be bent, cut and formed to suit different surfaces.

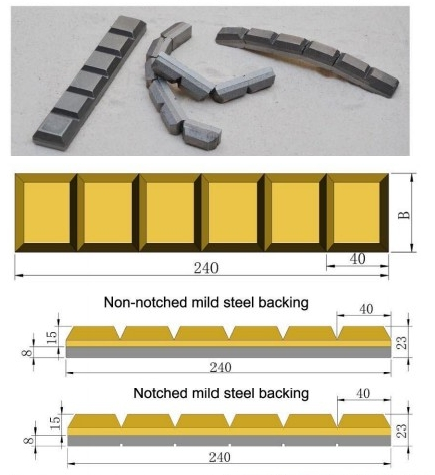

The standard is 23mm thick, length is 240mm,width could be from 25mm from 150mm. We can also produce according to your special requests

Item	Size	Dimension(mm)				N.W.
No.	(mm)	A	B	C	D	(kg)
CB 25	240×25×23	240	25	15	23	0.9
CB 40	240×40×23	240	40	15	23	1.5
CB 50	240×50×23	240	50	15	23	1.9
CB 65	240×65×23	240	65	15	23	2.5
CB 80	240×80×23	240	80	15	23	3.2
CB 90	240×90×23	240	90	15	23	3.5
CB 100	240×100×23	240	100	15	23	3.9
CB 130	240×130×23	240	130	15	23	5.4
CB 150	240×150×23	240	150	15	23	6
