Chromium Carbide Hardfacing Welding Wear Grinding Table
Chromium Carbide Grinding Table, when it working on the process of grinding work, there would be several and badly friction between grinding roller body and wear-resistant table lining. Due to the pressure of rolling of the roller, there the supporting force of the material be under grinding, and the frictional resistant between the material and the grinding roller lining will be increasing the tendency that severe abraision between the body and the ling, then the liner will crack or peel off, our chromium carbide wear grinding table adopts chromium carbide bimetallic composite material with fine metallurgical bond could carry out hardfaced wear resistant overlay welding on the surface of roller body, or could repair the surface of the lining part that had been be worn to get it well.
- Overview
- Recommended Products

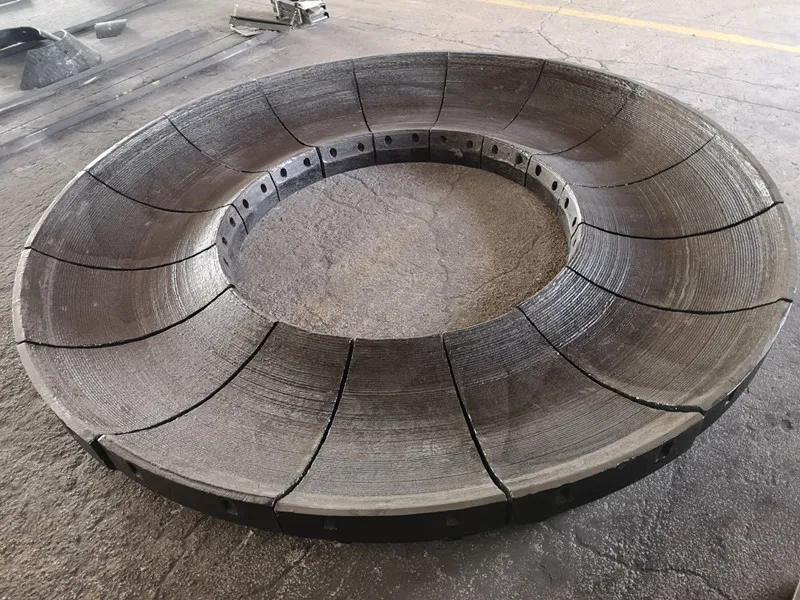

Chromium Carbide Hardfacing Welding Wear Grinding Table
Overview:
Chromium Carbide Hardfacing Welding Wear Grinding Table ,The surfacing welding can effectively repair the wear on the surface of the equipment.
Hardfacing Grinding Table improve the service life and operation efficiency of the equipment, and improve production efficiency and product quality.
Welding Grinding Table has the advantages of high flexibility, good economy and good repair effect. Widely used in steel, mining, electricity, cement, metallurgy, glass, building materials and other industries, for the maintenance and maintenance of important equipment is of great significance.
Surface Finish:
Applications:
| Product Name | Grinding roller table for wear resistance parts |
| Base Material | Q235/Q345/ZG45 |
| Overlay Material | Chromium carbide overlay |
| Thickness | 3+3,5+5,6+4,6+5,8+4,8+8,10+10,16+10,etc |
| Chemical composition | C:3.0-5.0%Cr:25-40% |
| Technology | Hardfacing,open arc welding,submerged arcwelding |
| Application | Mining,Steel,CementPower,PortCoal,etc |
| Hardness | HRC58-63 |
| Microstructure | Carbide (Cr7C3)volume fraction above 50 % |
| Flatness tolerance | ±3 mm/m |
| Thickness tolerance | uniform overlay thickness, with tolerance within 0-0.5 mm |
R & D ABILITY
♦Liaoning high-tech enterprise,wear-resistant overlay welding demostration center of MIIT
♦More than 50 national patents including invention patents
♦Well-equipped laboratory with high-end metallographic analysis equipment, spark- optical emission spectrometer.Carbon sulfur analyzer,spectro-photometer,grain-abrasion testing machine,rockwel hardness apparatus,impacttesting machine
♦Participate in setting wear-resistant pipe standard for DL/T power industry
♦Member of China Welding Association
♦Industry-university-research cooperation enterprise of Liaoning petrochemical University
![3462-202408271700221592[1].png](https://shopcdnpro.grainajz.com/category/437421/3412/d3d3dd7fee523c2699ad16a79104efcb/3462-202408271700221592%5B1%5D.png)
FAQ
Q: What are the advantages of using the Chromium Carbide Hardfacing Welding Wear Grinding Table?
A: This grinding table offers exceptional durability, superior performance, and versatility. Its wear-resistant properties ensure a longer lifespan for your equipment while improving grinding efficiency.
Q: Can this grinding table be used with different types of grinding equipment?
A: Yes, our hardfacing welding wear grinding table is designed to be compatible with various grinding equipment, including vertical roller mills and ball mills.
