HST 725HB Bimetallic Wear Products | Wear buttons

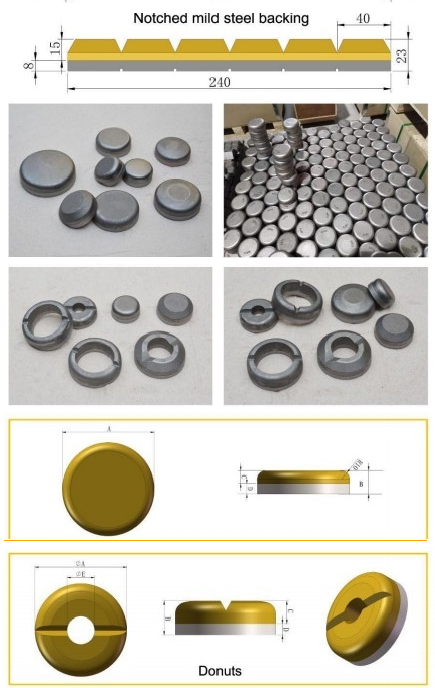

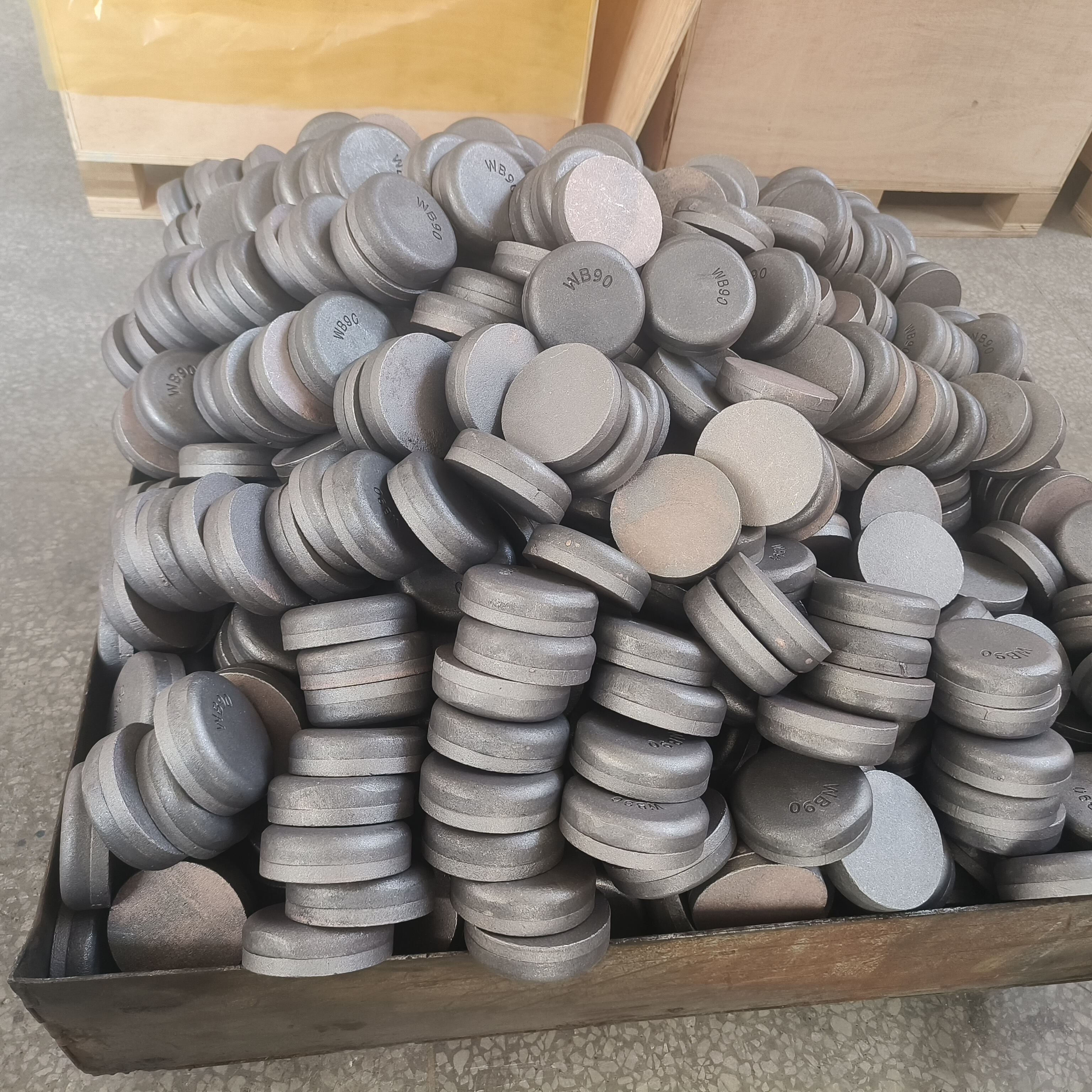

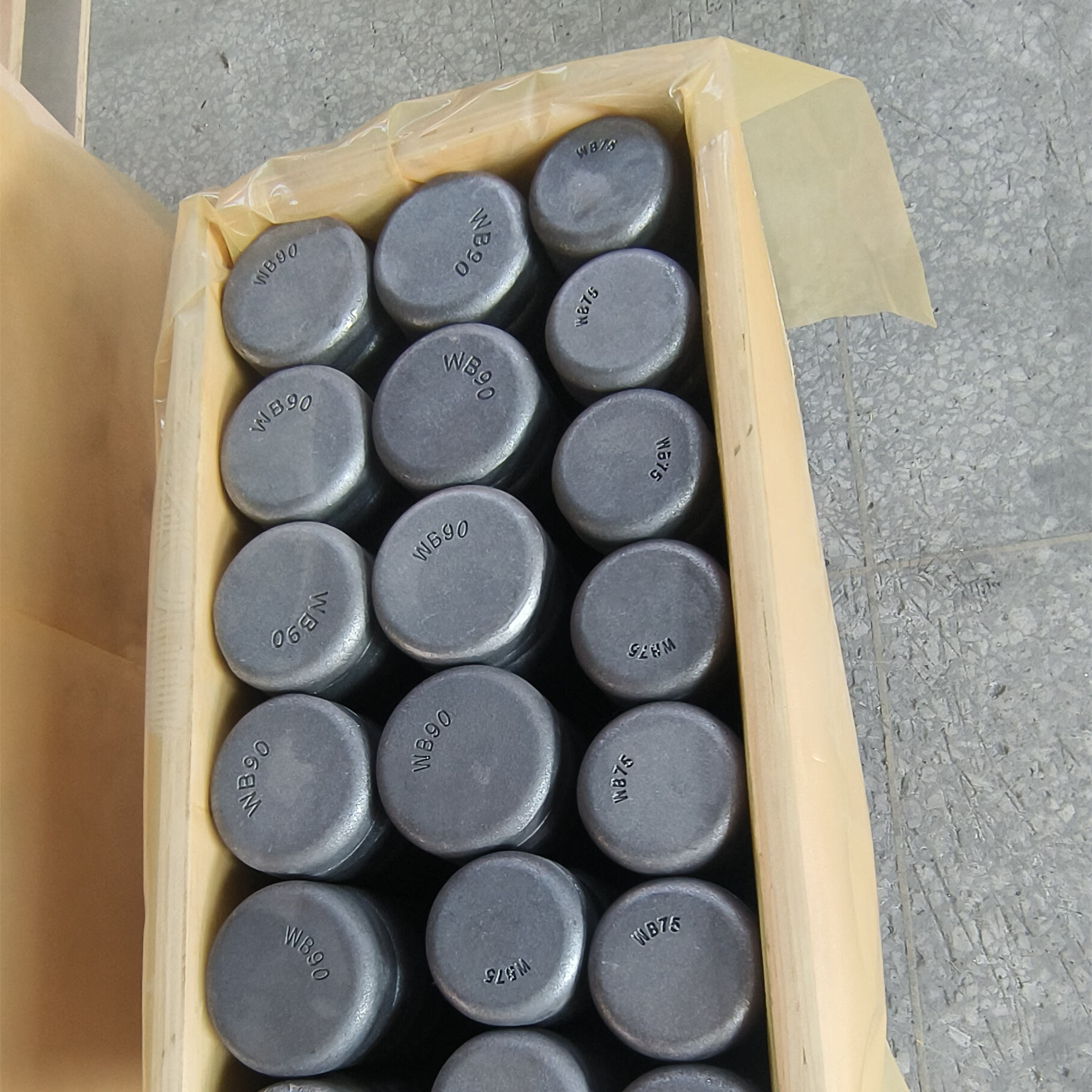

Wear buttons
Ideal for smaller areas that require materials resistant to abrasion and impact
Item No.	Size (mm)	Dimension(mm)					N.W. (kg)
Item No.	Size (mm)	A	B	C	D		N.W. (kg)
WB60	②60×27	60	27	17	10		0.7
WB 75	75×27	75	27	17	10		0.9
WB 90	90×27	90	27	17	10		1.4
WB 110	0110×32	110	32	20	12		2.3
WB 115	115×32	115	32	20	12		2.6
WB 150	ø150×41	150	41	25	16		5.7
Wear donuts
Item No.	Size (mm)	Dimension(mm)					N.W. (kg)
Item No.	Size (mm)	A	B	C	D	E	N.W. (kg)
WD 75	⑦75×25	75	25	17	8	25	0.7
WD 100A	ø100×25	100	25	17	8	50	1
WD 100B	⑧100×32	100	32	24	8	70	1
WD 130	130×23	130	23	15	8	80	1.3
WD 148	②148×35	148	35	25	10	108	2.2
