Suitable for extreme working conditions and positioned as high-end
Concrete-like structure with a clear anti-wear principle
Ultra-hard microstructure for longer wear life

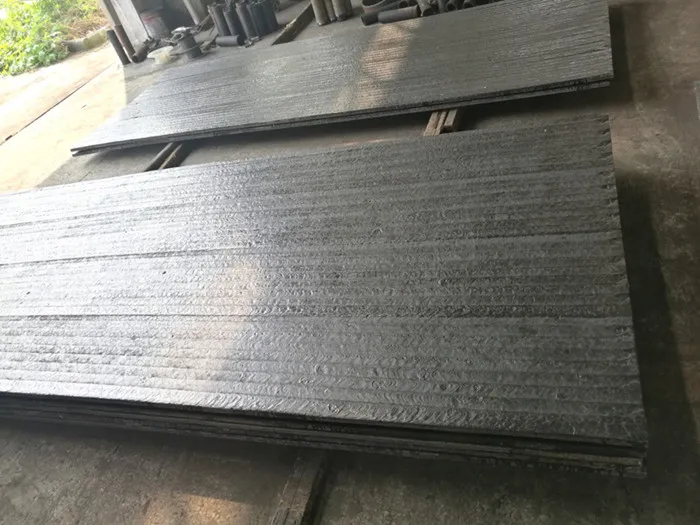

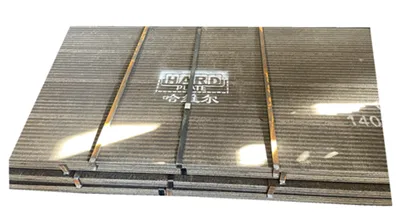

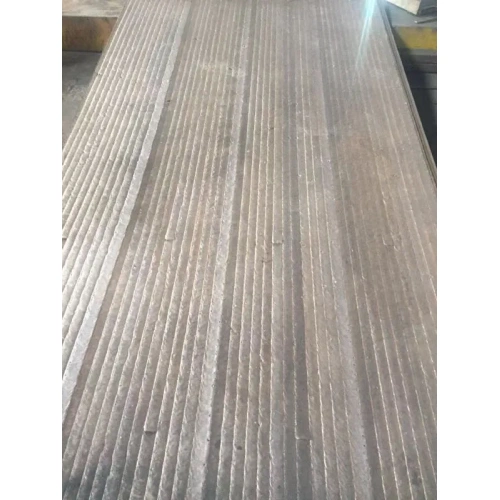

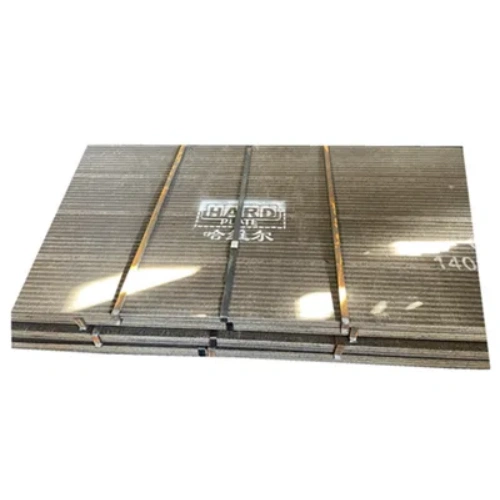

Chromium Carbide Overlay Wear Resistant Plate is a premium grade, permanently-bonded chrome carbide overlay plate made for the most severe abrasive wear environments. the high density of chrome carbide crystals in a tough alloy matrix act like the stones in concrete.
Weld Overlay Wear Plates Chromium Carbide Overlay (CCO) Wear Plates
HP400 Chromium Carbide Plate (CCO Plate )Welding Wear Resistant Plate has high hardness and excellent wear-resistant performance.
The base metal is a common rolled plate with good toughness and plasticity.
The wear-resistant alloy layer and the base metal are metallurgy combined and firmly combined in service,wear is resisted by the high hardness of the surface allov aver.
And the impact of external force is resisted by the strength and toughness of the matrix.
| Wear Resistant Plate Material | High-quality wear plate with a Chromium Carbide Overlay Welding layer |
| Sheet size | 1400*3000mm, 2100*3000mm /Customizied |
| Thickness |
3+3mm, 4+4mm, 5+5mm,6+6mm....20+20mm, 40+30mm /Customizied |
| Hardness | HRC 58-63 |
| Model |
HRC | Working Temperature | Wear Plate Alloy Chemical Composition(%) |
Wear Plate (CCO Plate)specification and thickness(mm) |
||||
| C | Cr | Mn | Nb | Others | ||||
| HP100 | 60-63 | >500°C | 3-5 | 22-28 | 48 |
4+4 4+5 6+5 8+8 8+6 8+8 10+5 10+6 10+7 10+8 10+10 12+5 12+6 12+8 12+10 12+12 14+6 14+8 14+10 16+4 16+6 16+8 16+10 16+12 |
||
| HP200 | 58-62 | >500°C | 3-5 | 20-26 | 1-3 | 2-5 | ||
| HP300 | 60-65 | >800°C | 4-6 | 18-25 | 2-3 | 5-8 | 3-6 | |
| HP400 | 50-55 | >500°C | 0.4-2 | 3-7 | 15-20 | 2-5 | ||
|
Industry Application |
Mining Industry | Excavator bucket liners, bucket-wheel excavator, scarper conveyor middle trough, elevator skip, hopper liner | ||||||
| Iron and steel industry | Bin liner, skip car liner, vibrating feeder lining, CDQ tank lining, coke-barrier car bottom plate, slag sluice lining | |||||||
| Cement industry | Raw mill lining, clinker chute lining, dust discharge pipe, guide vane, roller protection sleeve, slag mill wear parts | |||||||
| Power industry | Coal hopper lining plate , coal drop pipe liners, coal mill wear parts, ash pipeline, fan blade | |||||||
| Engineering industry | Shield machine wear parts, boring machine shovel plate, loader shovel plate, dump truck body plate | |||||||
| Glass industry | Blender mixer bottom plate, fan blade, fore and rear discs of fan impeller, quick-wearing wear parts | |||||||
| Port Industry | Loading and discharging machine, wear-resistant pipeline, channel dredging, bin liner | |||||||
| We also customize various specification CCO plate and wear parts according to customer requirement and drawings. | ||||||||
1.Liaoning high-tech enterprise and MIIT wear-resistant overlay welding demonstration center
2.Holder of 50+ national patents, including invention patents
3.Advanced in-house lab with full material testing and analysis equipment
4.Contributor to DL/T power industry wear-resistant pipe standards
5.Member of China Welding Association
6.Industry–university–research partner of Liaoning Petrochemical University
Contact us today to discuss your application and get a tailored solution.
Get a Quote
Due to the cooling rates of dissimilar metals. Our hard facing plate for coal chute liner is manufactured by welding which results in high temperatures. During the cooling, the plate goes through a stress relieving which is a natural process and does not effect the performance of the plate. The stress relief cracks should be between 3/4" - 2" apart. The cracks can be touched up by our chrome carbide welding rod.
hard facing plate for coal chute liner is usually attached by countersunk bolts, welding studs, perimeter welding, or plug welding. Some methods are better suited than others depending on the specific application. For more detail on each method see the installation section.
hard facing plate for coal chute liner cannot be machined or drilled. It can however be ground. Mild steel inserts are used to create countersunk or counter bored holes. hard facing plate for coal chute liner can be cut using plasma, Grinding wheel saw, or air-arc gouging.
Our product has no limit to quantity, it can be ordered according to customer requirement.
